In the coordinate system SA, the bevel equation of the small wheel surface of spiral bevel gear is:
Where:

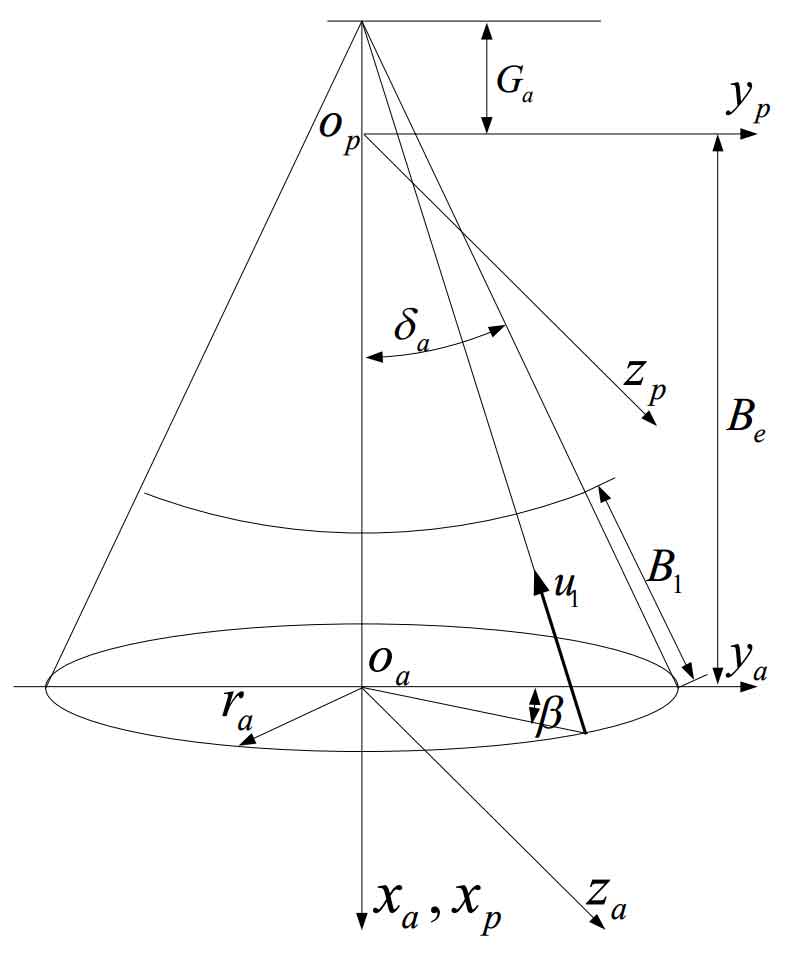

(U1, b) – parameters for determining the top moving point of spiral bevel gear pinion face cone
Ar — radius of outer circle of spiral bevel gear pinion
A D — bevel angle of small wheel surface of spiral bevel gear
