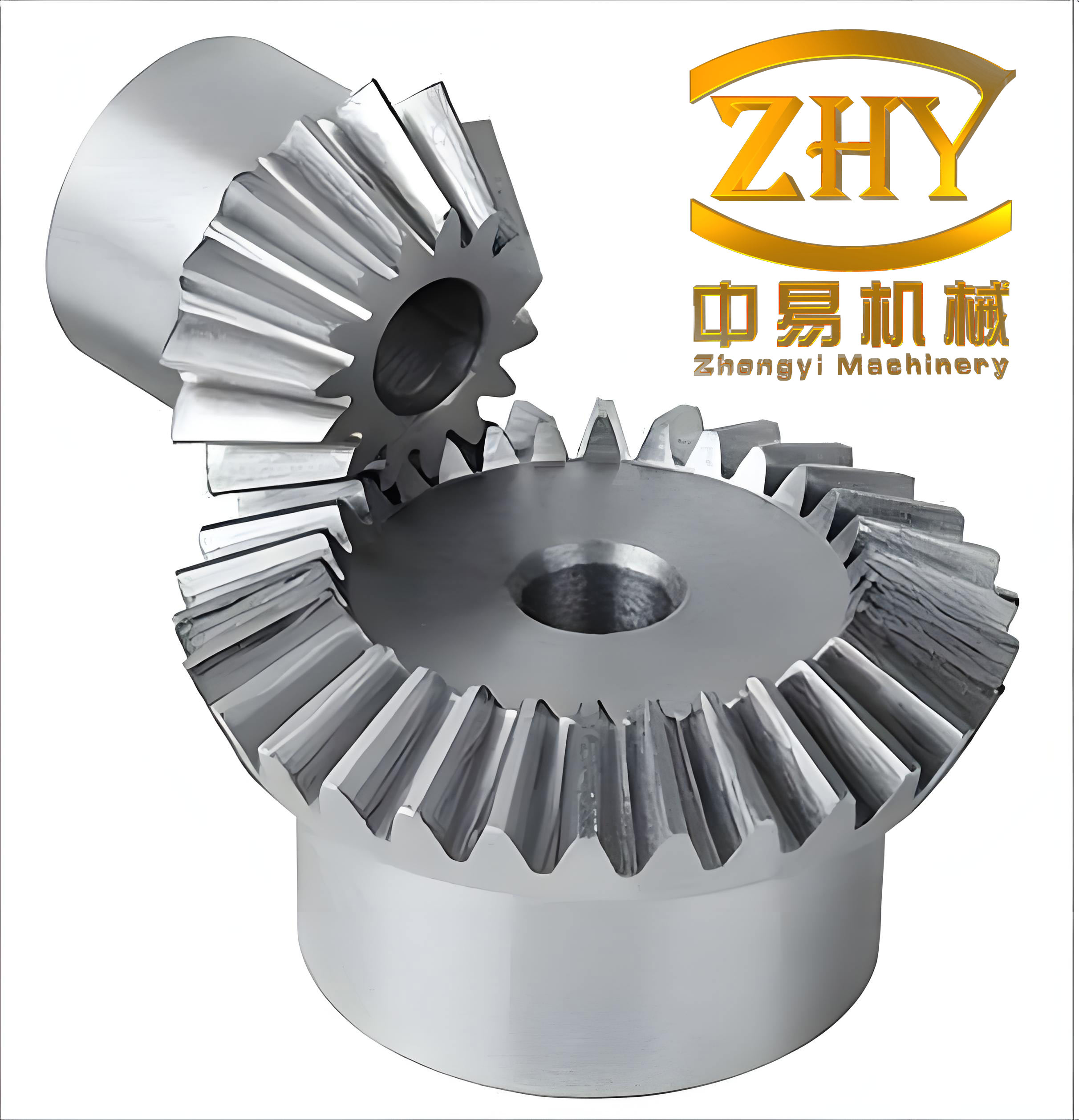

In the field of mechanical engineering, the performance of transmission systems, particularly in automotive applications, heavily relies on the efficiency and durability of gear components. Straight bevel gears play a critical role in such systems, facilitating power transmission and torque distribution. However, issues like noise, vibration, and premature wear often arise due to imperfections in gear meshing. To address these challenges, gear modification techniques, such as profile and helix modifications, are employed. This study focuses on the helical modification of straight bevel gears, utilizing KISSsoft software for simulation and Minitab for regression-based optimization. The primary goal is to analyze how modification parameters—helix modification amount, profile modification amount, and helix modification factors I and II—affect key response variables, including maximum tooth surface contact stress, transmission error peak difference, and bending stresses at the gear roots. By developing regression equations and optimizing these parameters, we aim to enhance the performance and longevity of straight bevel gears in practical applications.
Gear modification is essential for improving the meshing behavior of straight bevel gears. Profile modification involves altering the tooth profile along the height direction to mitigate transmission errors and reduce impact during engagement and disengagement. Helix modification, on the other hand, adjusts the tooth surface along the spiral direction to achieve better contact patterns and minimize edge loading. For straight bevel gears, which experience significant loads during operation, an eccentric crowning approach for helix modification is often preferred. This method involves parameters such as the small-end modification amount and helix modification factors I and II, which define the geometry of the modified surface. The mathematical expressions for these factors are given by:
$$f_1 = \frac{b_x}{b_F}$$
$$f_2 = \frac{C_2}{C_1}$$
where \( b_x \) is the distance from the small end to the midpoint along the helix direction, \( b_F \) is the modification length, and \( C_1 \) and \( C_2 \) are the modification amounts at the small and large ends, respectively. For profile modification, the modification length \( H \) can be derived based on the base pitch and overlap ratio, with adjustments for the varying module between the small and large ends of the straight bevel gear. The equations are:
$$H = P_b (\epsilon – 1)$$
$$h_2 = h_1 \left( \frac{R – b}{R} \right)$$
Here, \( P_b \) is the base pitch, \( \epsilon \) is the overlap ratio, \( h_1 \) and \( h_2 \) are the modification lengths at the small and large ends, \( R \) is the theoretical cone distance, and \( b \) is the face width. Based on empirical data and calculations, the profile modification amount \( C_a \) typically ranges from 0 to 60 μm, while the helix modification amount varies from 0 to 80 μm, with factors I and II in the intervals [0.2, 0.8] and [0.4, 2], respectively. These ranges ensure that the straight bevel gear achieves optimal performance without compromising structural integrity.
To investigate the effects of these modification parameters on the response variables, a comprehensive analysis was conducted using KISSsoft software. A model of a straight bevel gear pair was developed, with key parameters summarized in the table below. The planetary gear had 11 teeth, while the semi-axle gear had 17 teeth, both with a module of 5.855 mm and a pressure angle of 24.6 degrees. The face width was set to 28.5 mm, and the cone angles were 36.22 and 52.18 degrees for the planetary and semi-axle gears, respectively. Simulations were performed under various modification scenarios to evaluate the impact on transmission error, contact stress, and bending stresses.
| Parameter | Planetary Gear | Semi-Axle Gear |
|---|---|---|
| Module (mm) | 5.855 | 5.855 |
| Number of Teeth | 11 | 17 |
| Pressure Angle (°) | 24.6 | 24.6 |
| Face Width (mm) | 28.5 | 28.5 |
| Pitch Angle (°) | 36.22 | 52.18 |
The relationship between modification parameters and response variables was analyzed through a series of simulations. For instance, the transmission error peak difference, which indicates the stability of gear meshing, was found to decrease as the profile modification amount increased. This is because profile modification reduces the abrupt changes in tooth engagement, leading to smoother operation. In contrast, variations in helix modification amount and factors I and II had minimal impact on the transmission error peak difference, as observed in overlapping curves from the simulations. This suggests that for straight bevel gears, profile modification plays a more significant role in controlling transmission errors compared to helix modifications.
Next, the maximum tooth surface contact stress was examined. As the profile modification amount increased, the contact stress exhibited a complex behavior: it initially decreased, then increased, and finally decreased again. The minimum stress occurred at a profile modification of approximately 2 μm. Helix modification factors also influenced this response; the lowest contact stress was achieved at factor I of 0.26 and factor II of 0.8. This nonlinear relationship highlights the importance of optimizing modification parameters to avoid excessive stress concentrations, which can lead to pitting and fatigue in straight bevel gears.
Bending stresses at the gear roots are critical for assessing the structural strength of straight bevel gears. For the planetary gear root, the bending stress increased rapidly with initial increments in profile modification, then stabilized at higher values. Helix modification amount showed a U-shaped effect, with the minimum stress at 11 μm. Factor I had an inverse relationship with stress, while factor II reached an optimum at 0.43. Similarly, for the semi-axle gear root, bending stress generally decreased with increasing profile modification. Helix modification amount followed a similar trend as the planetary gear, with a minimum at 14 μm, and factor II minimized stress at 0.48. These findings underscore the need for balanced modification to prevent over-stressing the gear teeth.
| Response Variable | Effect of Profile Modification | Effect of Helix Modification | Optimal Factor I | Optimal Factor II |
|---|---|---|---|---|
| Transmission Error Peak Difference | Decreases | Negligible | N/A | N/A |
| Max Tooth Surface Contact Stress | Nonlinear: Decrease-Increase-Decrease | Minimum at specific amounts | 0.26 | 0.8 |
| Planetary Gear Root Bending Stress | Rapid increase, then slow increase | U-shaped, min at 11 μm | Decreases with increase | 0.43 |
| Semi-Axle Gear Root Bending Stress | Generally decreases | U-shaped, min at 14 μm | Varies | 0.48 |
To optimize the modification parameters, a full factorial test design was implemented using Minitab software. This approach allowed for the development of regression equations that model the relationships between the input parameters (helix modification amount, profile modification amount, factor I, and factor II) and the response variables. The regression models were based on simulation data and aimed to minimize the transmission error peak difference, reduce the maximum contact stress, and keep the planetary gear root bending stress below 1100 MPa. The general form of the regression equation for a response variable \( Y \) can be expressed as:
$$Y = \beta_0 + \beta_1 X_1 + \beta_2 X_2 + \beta_3 X_3 + \beta_4 X_4 + \beta_{12} X_1 X_2 + \beta_{13} X_1 X_3 + \beta_{14} X_1 X_4 + \beta_{23} X_2 X_3 + \beta_{24} X_2 X_4 + \beta_{34} X_3 X_4 + \epsilon$$
where \( X_1 \) to \( X_4 \) represent the modification parameters, \( \beta \) coefficients are determined through regression analysis, and \( \epsilon \) is the error term. For instance, the equation for transmission error peak difference \( \Delta TE \) might be simplified as:
$$\Delta TE = 25.5 – 0.1 C_a + 0.05 C_h – 0.2 f_1 + 0.1 f_2$$
where \( C_a \) is the profile modification amount, \( C_h \) is the helix modification amount, \( f_1 \) is factor I, and \( f_2 \) is factor II. Similarly, equations for contact stress and bending stresses were derived, incorporating interaction terms to capture nonlinear effects. The Minitab response optimizer was then used to find the optimal parameter values that satisfy the multiple objectives simultaneously.
The optimization results indicated that the best performance for the straight bevel gear was achieved with a helix modification amount of 10.08 μm, a profile modification amount of 38.85 μm, helix modification factor I of 0.3526, and factor II of 0.5115. These values were validated by comparing the predicted response variables from the regression models with actual simulation results. The error rates were all within 3%, demonstrating the accuracy of the models. For example, the transmission error peak difference had an error of 0.06%, while the maximum contact stress error was 2.46%. This close agreement confirms that the regression-based approach is reliable for predicting the behavior of straight bevel gears under various modification scenarios.
| Parameter | Optimized Value | Predicted Response | Actual Response | Error Rate |
|---|---|---|---|---|
| Helix Modification Amount (μm) | 10.08 | N/A | N/A | N/A |
| Profile Modification Amount (μm) | 38.85 | N/A | N/A | N/A |
| Helix Modification Factor I | 0.3526 | N/A | N/A | N/A |
| Helix Modification Factor II | 0.5115 | N/A | N/A | N/A |
| Transmission Error Peak Difference (μm) | N/A | 25.84 | 25.81 | 0.06% |
| Max Tooth Surface Contact Stress (MPa) | N/A | 2429.63 | 2482.51 | 2.46% |
| Planetary Gear Root Bending Stress (MPa) | N/A | 1173.15 | 1164.22 | 0.61% |
| Semi-Axle Gear Root Bending Stress (MPa) | N/A | 541.42 | 543.29 | 0.42% |
Furthermore, a comparison between the pre- and post-optimization response variables revealed significant improvements. After optimization, the transmission error peak difference decreased by 9.16%, the maximum contact stress reduced by 3.01%, the planetary gear root bending stress lowered by 4.15%, and the semi-axle gear root bending stress fell by 5.21%. These enhancements contribute to a more stable transmission system with reduced noise and vibration, which is crucial for applications involving straight bevel gears in automotive differentials and other machinery.
In conclusion, this study demonstrates the effectiveness of using helical modification and regression-based optimization for straight bevel gears. By analyzing the interplay between modification parameters and response variables, we developed accurate regression models that facilitate parameter tuning. The optimization process, guided by Minitab, resulted in parameter sets that minimize undesirable effects like high contact and bending stresses while improving transmission accuracy. Future work could explore additional factors, such as material properties and lubrication conditions, to further refine the performance of straight bevel gears. Overall, this approach provides a practical framework for engineers to enhance the durability and efficiency of gear systems in real-world applications.
The mathematical modeling and simulation efforts underscore the importance of a systematic approach to gear design. For instance, the regression equations derived in this study can be integrated into computer-aided design tools to automate the optimization process for straight bevel gears. Additionally, the use of advanced software like KISSsoft and Minitab enables rapid iteration and validation, reducing the time and cost associated with physical prototyping. As industries continue to demand higher performance from transmission systems, such methodologies will become increasingly valuable for developing robust and reliable straight bevel gears.
Moreover, the insights gained from this analysis can be extended to other types of gears, such as spiral bevel or hypoid gears, where similar modification techniques are applied. However, the unique geometry of straight bevel gears requires careful consideration of parameters like cone distance and face width. By continuing to refine these models and incorporate real-world data, we can further advance the state of gear technology and contribute to more efficient mechanical systems. In summary, the multi-objective regression equation optimization presented here offers a powerful tool for improving the performance of straight bevel gears, ensuring they meet the rigorous demands of modern engineering applications.
