Import the model of elliptical arc tooth line cylindrical gear pair into Adams, add constraints and motion pairs in the model, apply driving force, then conduct kinematics simulation, and finally generate simulation data report. Set the material of the elliptical arc tooth line cylindrical gear to steel, and set the Young’s modulus to 2 07 × 105N/mm3, density set to 7.8 × 10-6 kg/mm3, Poisson’s ratio set to 0 29。

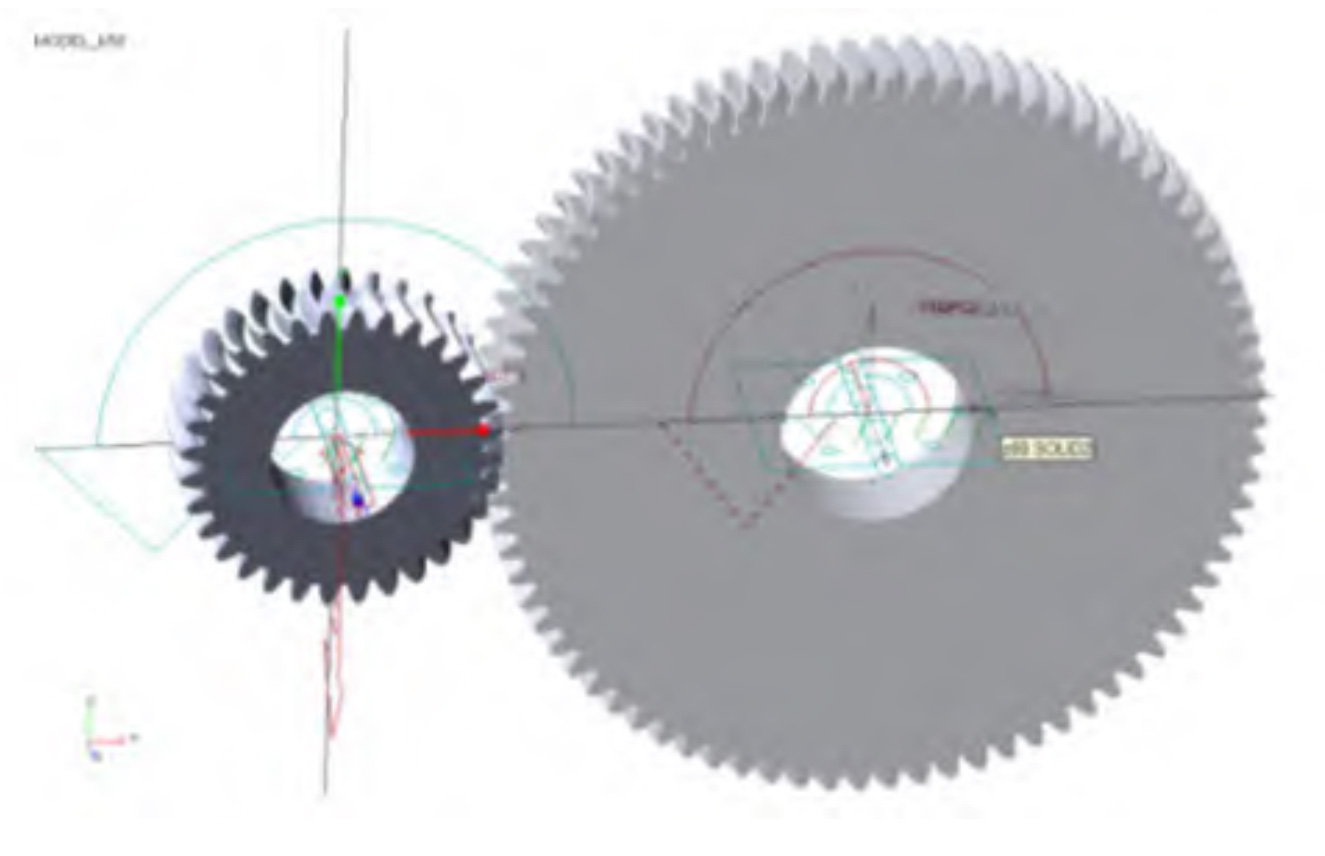

As shown in the figure, apply a constant speed of 3500 (°)/s to the driving wheel and increase the STEP function, expressed as STEP (0 5, 0, 0, 0.2150 000), apply a constant load of 15 000 N · mm, and simulate the output of the driven wheel speed of the elliptical arc tooth line cylindrical gear pair.
