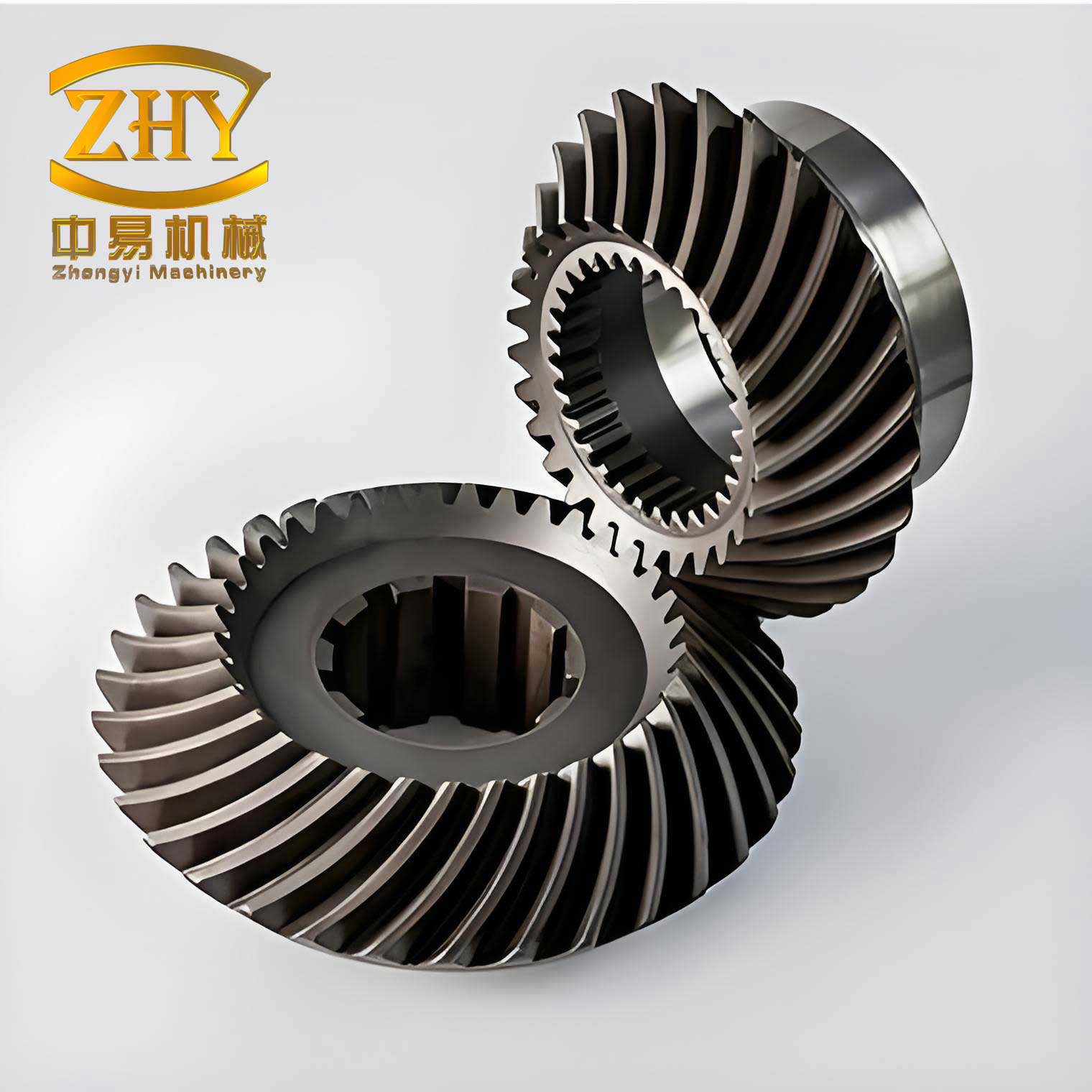

In the field of power transmission, spiral gears have long been recognized for their high load-carrying capacity, durability, and excellent running-in performance. These gears, which operate on a point-contact system, are widely used in industries such as metallurgy, machinery, mining, and petroleum equipment. Over the years, advancements in gear design have evolved from single-arc spiral gears to double-arc and quadruple-arc spiral gears, each offering improved performance by distributing contact stresses over multiple points. In this context, I propose a new type of spiral gear—the sextuple-arc spiral gear—which features six working arcs on each tooth flank. This design aims to further enhance load distribution, increase meshing points, and improve transmission stability. In this article, I will delve into the design principles, meshing characteristics, and key calculations for these innovative spiral gears, providing a comprehensive analysis to facilitate their application in engineering practices.
The fundamental concept behind multi-arc spiral gears is to reduce stress concentration by increasing the number of contact points along the tooth profile. Single-arc spiral gears have only one meshing point per axial pitch, leading to localized stress. Double-arc spiral gears introduce two meshing points, effectively doubling the load-bearing capacity. Similarly, quadruple-arc spiral gears distribute stress across four points, with studies showing over 60% improvement in load capacity compared to double-arc designs. Building on this progression, the sextuple-arc spiral gear extends this principle to six meshing points—three convex arcs above the pitch line and three concave arcs below it—connected by transition arcs. This configuration theoretically increases the load capacity sixfold compared to single-arc designs, while also enhancing meshing continuity and reducing vibration. The design and analysis of such spiral gears require detailed calculations of meshing coefficients and optimal gear dimensions, which I will explore in the following sections.
The basic tooth profile of the sextuple-arc spiral gear is composed of six working arcs arranged in a tiered manner. As shown in the figure above, the profile includes three convex arcs located above the pitch line and three concave arcs below it, with each pair of adjacent arcs connected by a transition arc. This design involves tangential displacement of adjacent tooth profiles in the tooth height direction, ensuring smooth transitions and effective load sharing. The key parameters defining this profile include: radii of the convex arcs (denoted as $\rho_{a1}$, $\rho_{a2}$, $\rho_{a3}$), radii of the concave arcs ($\rho_{f1}$, $\rho_{f2}$, $\rho_{f3}$), center offsets for convex arcs ($e_{a1}$, $e_{a2}$, $e_{a3}$, $C_{a1}$, $C_{a2}$, $C_{a3}$) and concave arcs ($e_{f1}$, $e_{f2}$, $e_{f3}$, $C_{f1}$, $C_{f2}$, $C_{f3}$), process angles for convex arcs ($\theta_1$, $\theta_2$), transition arc radii ($r_1$, $r_2$, $r_3$), and the root fillet radius ($r_g$). These parameters are critical for ensuring proper meshing and strength of the spiral gears. The profile is designed to maintain continuous contact across multiple points during operation, which is essential for high-performance applications of spiral gears.
To analyze the meshing behavior of sextuple-arc spiral gears, the first step is to calculate the axial distances between the six meshing points on a single tooth. This involves projecting the gear’s tooth profile onto the normal plane and considering the展开 of the pitch cylinder. Let $P_x$ represent the axial pitch, $\beta$ the helix angle, and $\alpha$ the pressure angle. The meshing lines for the convex arcs (AA, BB, CC) and concave arcs (DD, EE, FF) are distributed on either side of the pitch line. The contact points on the cylindrical helix appear as lines at an angle $\beta$ to the meshing lines when展开. The axial distance between the outermost meshing points, denoted as $q_{TA}$, can be derived from geometric relations. For instance, the distance between points on the third convex arc and the third concave arc is given by:
$$ q_{TA} = \frac{2C_{a3} + 0.5\pi m – 0.5j + 2e_{a3}\cot\alpha}{\sin\beta} – 2\left(\rho_{a3} + \frac{e_{a3}}{\sin\alpha}\right)\cos\alpha\sin\beta $$
where $m$ is the module and $j$ is the backlash. Similarly, axial distances for other points are calculated. Let $q_{T1}$, $q_{T2}$, and $q_{T3}$ represent the axial distances between consecutive meshing points on the same tooth flank. Specifically, $q_{T1}$ is the distance between the third and second convex arc points, $q_{T2}$ between the second and first convex arc points, and $q_{T3}$ between the first convex and first concave arc points. These distances are expressed as:
$$ q_{T3} = \frac{0.5\pi m – 2C_{a1} – 0.5j + 2e_{a1}\cot\alpha}{\sin\beta} – 2\left(\rho_{a1} + \frac{e_{a1}}{\sin\alpha}\right)\cos\alpha\sin\beta $$
$$ 2q_{T2} = \frac{2C_{a2} + 0.5\pi m – 0.5j + 2e_{a2}\cot\alpha}{\sin\beta} – 2\left(\rho_{a2} + \frac{e_{a2}}{\sin\alpha}\right)\cos\alpha\sin\beta $$
$$ q_{T1} = \frac{q_{TA} – 2q_{T2} – q_{T3}}{2} $$
Additionally, the axial distance between adjacent teeth’s contact points, denoted as $q’_{TA}$, is given by $q’_{TA} = P_x – q_{TA}$. These calculations form the basis for determining meshing coefficients in sextuple-arc spiral gears.
The meshing characteristics of spiral gears depend heavily on the gear width $b$, which influences the number of simultaneous contact points and tooth pairs in mesh. For sextuple-arc spiral gears, the gear width can be expressed as $b = nP_x + \Delta b$, where $n$ is an integer representing the number of full axial pitches, and $\Delta b$ is the remaining width less than $P_x$. The meshing process involves periodic changes in contact points as the gear rotates, leading to different meshing coefficients based on $\Delta b$. I divide $\Delta b$ into eleven intervals, as illustrated below, to analyze these variations systematically. These intervals are defined by the axial distances $q_{TA}$, $q’_{TA}$, $q_{T1}$, $q_{T2}$, and $q_{T3}$, which govern the transition between meshing states.
The meshing coefficients include multi-point meshing coefficients (e.g., $\epsilon_{6nd}$ for six-point contact) and multi-pair meshing coefficients (e.g., $\epsilon_{nz}$ for $n$ tooth pairs in contact). These coefficients represent the ratio of the rotation angle during which a specific meshing state occurs to the angle corresponding to one axial pitch. For each interval of $\Delta b$, I derive formulas for these coefficients by considering the sequence of contact points along the gear width. For example, when $\Delta b \leq q’_{TA}$, the meshing cycles through states with 6, 7, 6, 7, etc., points in contact, depending on the axial movement. The detailed calculations yield tables summarizing the coefficients for all intervals, ensuring accuracy by verifying that the sum of all coefficients equals unity. This approach provides a robust framework for optimizing the design of sextuple-arc spiral gears.
To present the results clearly, I compile the multi-point meshing coefficients in Table 1 and the multi-pair meshing coefficients in Table 2. These tables cover all eleven intervals of $\Delta b$, enabling designers to select appropriate gear widths for desired performance. For instance, when $\Delta b \leq q’_{TA}$, the six-point meshing coefficient is $\epsilon_{6nd} = (P_x – 6\Delta b)/P_x$, and the seven-point coefficient is $\epsilon_{(6n+1)d} = 6\Delta b / P_x$. Similarly, the tooth pair coefficients are $\epsilon_{nz} = (q’_{TA} – \Delta b)/P_x$ and $\epsilon_{(n+1)z} = (q_{TA} + \Delta b)/P_x$. As $\Delta b$ increases, the coefficients shift, reflecting changes in meshing dynamics. These calculations highlight how sextuple-arc spiral gears can achieve higher contact ratios compared to traditional designs, enhancing their suitability for heavy-duty applications.
| Coefficient Type | $\Delta b \leq q’_{TA}$ | $q’_{TA} < \Delta b \leq q_{T1}$ | $q_{T1} < \Delta b \leq q’_{TA} + q_{T1}$ | $q’_{TA} + q_{T1} < \Delta b \leq q_{T1} + q_{T2}$ | $q_{T1} + q_{T2} < \Delta b \leq q’_{TA} + q_{T1} + q_{T2}$ |
|---|---|---|---|---|---|
| $\epsilon_{6nd}$ | $\frac{P_x – 6\Delta b}{P_x}$ | $\frac{q_{TA} – 5\Delta b}{P_x}$ | — | — | — |
| $\epsilon_{(6n+1)d}$ | $\frac{6\Delta b}{P_x}$ | $\frac{2q’_{TA} + 4\Delta b}{P_x}$ | $\frac{2P_x – 6\Delta b}{P_x}$ | $\frac{2q_{T1} + 4q_{T2} + 2q_{T3} – 4\Delta b}{P_x}$ | — |
| $\epsilon_{(6n+2)d}$ | $\frac{\Delta b – q’_{TA}}{P_x}$ | $\frac{6\Delta b – P_x}{P_x}$ | $\frac{2q_{T1} – 2q_{T2} – q_{T3} + 3q’_{TA} + 2\Delta b}{P_x}$ | $\frac{3P_x – 6\Delta b}{P_x}$ | $\frac{2q_{T1} + 4q_{T2} + 3q_{T3} – 3\Delta b}{P_x}$ |
| $\epsilon_{(6n+3)d}$ | — | — | $\frac{2\Delta b – 2q_{T1} – 2q’_{TA}}{P_x}$ | $\frac{6\Delta b – 2P_x}{P_x}$ | $\frac{4q_{T1} – 2q_{T3} + 4q’_{TA}}{P_x}$ |
| $\epsilon_{(6n+4)d}$ | — | — | — | — | $\frac{3\Delta b – 4q_{T1} – 2q_{T2} – 3q’_{TA}}{P_x}$ |
| Coefficient Type | $q_{T1} + q_{T2} + q_{T3} < \Delta b \leq q’_{TA} + q_{T1} + q_{T2} + q_{T3}$ | $q’_{TA} + q_{T1} + q_{T2} + q_{T3} < \Delta b \leq q_{T1} + 2q_{T2} + q_{T3}$ | $q_{T1} + 2q_{T2} + q_{T3} < \Delta b \leq q’_{TA} + q_{T1} + 2q_{T2} + q_{T3}$ | $q’_{TA} + q_{T1} + 2q_{T2} + q_{T3} < \Delta b \leq q_{TA}$ | $q_{TA} < \Delta b \leq P_x$ |
|---|---|---|---|---|---|
| $\epsilon_{6nd}$ | — | — | — | — | — |
| $\epsilon_{(6n+1)d}$ | — | — | — | — | — |
| $\epsilon_{(6n+2)d}$ | — | — | — | — | — |
| $\epsilon_{(6n+3)d}$ | $\frac{4P_x – 6\Delta b}{P_x}$ | $\frac{2q_{T1} + 4q_{T2} + 2q_{T3} – 2\Delta b}{P_x}$ | — | — | — |
| $\epsilon_{(6n+4)d}$ | $\frac{6\Delta b – 3P_x}{P_x}$ | $\frac{6q_{T1} + 2q_{T2} + q_{T3} – 2\Delta b + 5q’_{TA}}{P_x}$ | $\frac{5P_x – 6\Delta b}{P_x}$ | $\frac{q_{TA} – \Delta b}{P_x}$ | — |
| $\epsilon_{(6n+5)d}$ | $\frac{4\Delta b – 6q_{T1} – 4q_{T2} – 2q_{T3} – 4q’_{TA}}{P_x}$ | $\frac{6\Delta b – 4P_x}{P_x}$ | $\frac{4P_x + 2q’_{TA} – 4\Delta b}{P_x}$ | $\frac{6P_x – 6\Delta b}{P_x}$ | — |
| $\epsilon_{(6n+6)d}$ | — | — | $\frac{5\Delta b – 4P_x – q’_{TA}}{P_x}$ | $\frac{6\Delta b – 5P_x}{P_x}$ | — |
| Coefficient Type | $\Delta b \leq q’_{TA}$ | $\Delta b > q’_{TA}$ |
|---|---|---|
| $\epsilon_{nz}$ | $\frac{q’_{TA} – \Delta b}{P_x}$ | — |
| $\epsilon_{(n+1)z}$ | $\frac{q_{TA} + \Delta b}{P_x}$ | $\frac{P_x + q’_{TA} – \Delta b}{P_x}$ |
| $\epsilon_{(n+2)z}$ | — | $\frac{\Delta b – q’_{TA}}{P_x}$ |
The selection of gear width $b$ is crucial for maximizing the benefits of sextuple-arc spiral gears. Based on the meshing coefficients, I determine the minimum gear width $b_{\text{min}}$ required to achieve specific meshing conditions, such as a minimum number of tooth pairs or contact points. Table 3 summarizes the relationships between $\Delta b$ intervals and the corresponding meshing states. For example, to ensure at least $n$ tooth pairs and $6n$ contact points, $\Delta b$ must satisfy $\Delta b \leq q’_{TA}$. As $\Delta b$ increases, higher meshing points and tooth pairs become possible, allowing designers to tailor gear dimensions for optimal performance. This flexibility is a key advantage of spiral gears, enabling their use in diverse applications.
| Minimum Meshing State | Range of $\Delta b$ |
|---|---|
| $n$ tooth pairs, $6n$ points | $\Delta b \leq q’_{TA}$ |
| $n+1$ tooth pairs, $6n$ points | $q’_{TA} < \Delta b \leq q_{T1}$ |
| $n+1$ tooth pairs, $6n+1$ points | $q_{T1} < \Delta b \leq q_{T1} + q_{T2}$ |
| $n+1$ tooth pairs, $6n+2$ points | $q_{T1} + q_{T2} < \Delta b \leq q_{T1} + q_{T2} + q_{T3}$ |
| $n+1$ tooth pairs, $6n+3$ points | $q’_{TA} + q_{T1} + q_{T2} + q_{T3} < \Delta b \leq q_{TA} – q_{T1}$ |
| $n+1$ tooth pairs, $6n+4$ points | $q_{T1} + 2q_{T2} + q_{T3} < \Delta b \leq q_{TA}$ |
| $n+1$ tooth pairs, $6n+5$ points | $q_{TA} < \Delta b \leq P_x$ |
In conclusion, the sextuple-arc spiral gear represents a significant advancement in gear technology, offering superior load distribution and meshing stability through its six-point contact design. By calculating axial distances, meshing coefficients, and optimal gear widths, I have established a foundation for practical implementation. The tables and formulas provided here simplify the design process, allowing engineers to harness the full potential of these spiral gears. Future work could focus on experimental validation, finite element analysis for stress distribution, and applications in high-torque environments. As spiral gears continue to evolve, innovations like the sextuple-arc design will drive efficiency and reliability in mechanical systems worldwide.
The helical nature of spiral gears introduces a helix angle $\beta$, which influences the meshing behavior and load capacity. The lead angle $\Phi$, defined as the angle between the tangent to the helix at the pitch diameter and a plane perpendicular to the gear axis, is related to $\beta$ by $\Phi = 90^\circ – \beta$ for external gears. This angle affects self-locking and anti-backlash properties, crucial for precision applications of spiral gears. In sextuple-arc spiral gears, the helix angle must be carefully chosen to balance axial thrust and meshing smoothness. The formulas derived earlier incorporate $\beta$ to ensure accurate calculations for real-world scenarios.
To further elaborate on the design aspects, consider the stress analysis of sextuple-arc spiral gears. The distribution of contact stresses across six points reduces peak stresses compared to fewer points, enhancing fatigue life. Using Hertzian contact theory, the stress at each meshing point can be estimated based on the arc radii and load sharing. For instance, the contact stress $\sigma_c$ for a convex arc is given by:
$$ \sigma_c = \sqrt{\frac{F E^*}{\pi \rho_{ai} L}} $$
where $F$ is the normal load, $E^*$ is the equivalent modulus of elasticity, $\rho_{ai}$ is the radius of the convex arc, and $L$ is the contact length. Similar calculations apply to concave arcs, with adjustments for curvature. By optimizing the arc radii and offsets, designers can minimize stresses and improve the durability of spiral gears.
The manufacturing of sextuple-arc spiral gears requires precision machining techniques, such as CNC grinding or hobbling, to achieve the complex tooth profile. Tolerances on parameters like $e_{ai}$ and $C_{ai}$ must be tightly controlled to ensure proper meshing. Additionally, heat treatment processes, such as carburizing or nitriding, can enhance surface hardness and wear resistance. These considerations are vital for producing high-quality spiral gears that meet industry standards.
In terms of applications, sextuple-arc spiral gears are suitable for heavy-duty machinery where high torque and shock loads are common. Examples include wind turbine gearboxes, mining equipment, and marine propulsion systems. Their improved meshing characteristics reduce noise and vibration, contributing to smoother operation and lower maintenance costs. As industries demand more efficient and reliable power transmission, the adoption of advanced spiral gears like the sextuple-arc design is likely to grow.
Finally, I emphasize the importance of computational tools in designing sextuple-arc spiral gears. Software for gear analysis, such as finite element method (FEM) packages, can simulate meshing behavior under various loads, validating the theoretical calculations presented here. Parametric modeling allows quick iteration of design parameters to optimize performance. By integrating these tools, engineers can accelerate the development of next-generation spiral gears, pushing the boundaries of mechanical engineering.
