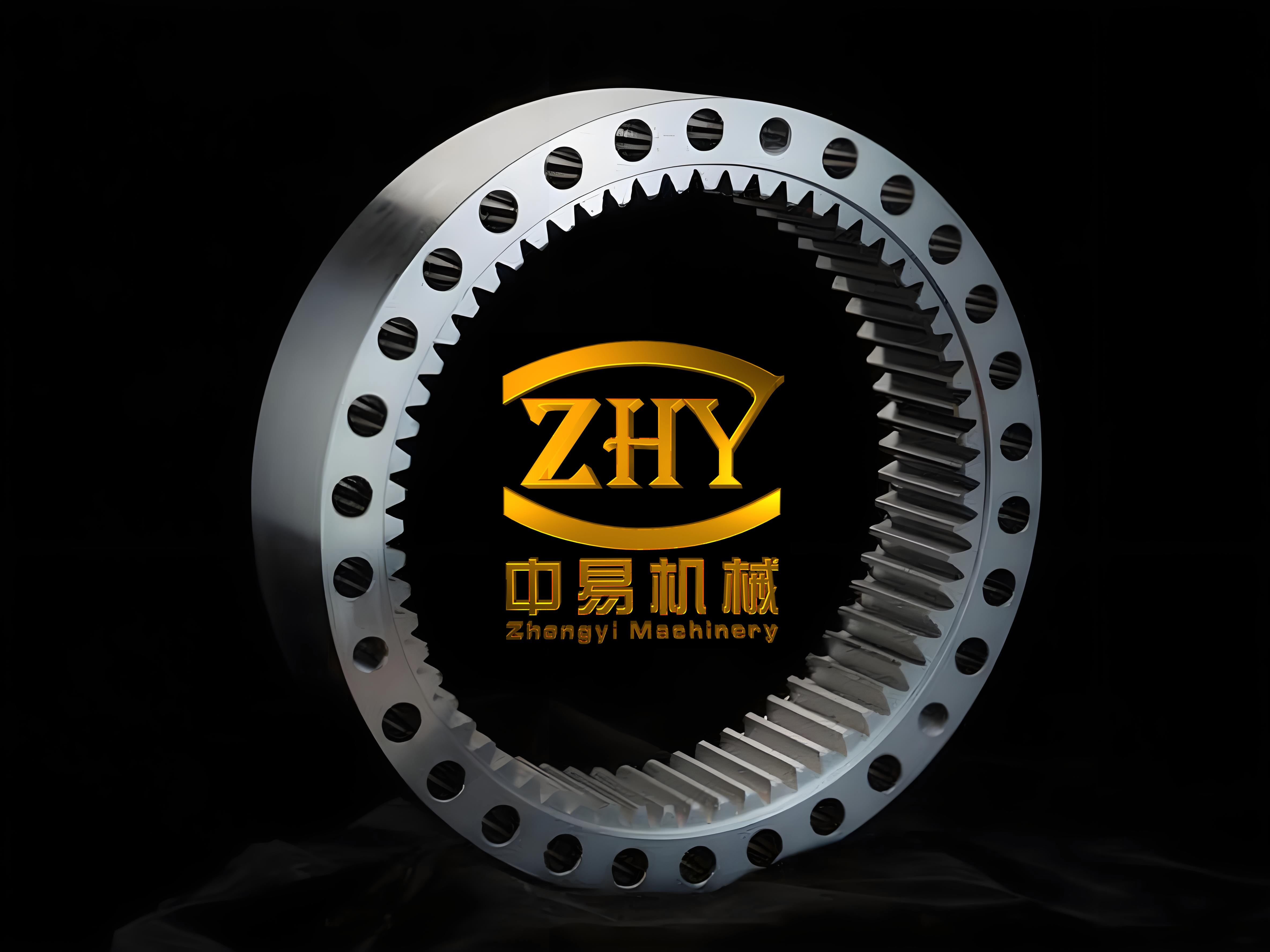

As an engineer specializing in gear manufacturing, I have extensively studied the challenges and solutions in producing high-quality internal gears. Internal gear transmission offers significant advantages, including compact radial dimensions, efficient motion synthesis and decomposition, high transmission ratios, and enhanced load-bearing capacity. These benefits make internal gears indispensable in various mechanical systems, such as automotive transmissions, industrial machinery, and precision instruments. However, achieving superior machining quality in internal gears remains a critical concern for internal gear manufacturers. Unlike external gears, internal gears present unique difficulties in finishing processes like grinding, shaving, or honing due to limited internal space. Consequently, the primary method for refining internal gears relies on precision slotting or broaching, where maintaining stable feed conditions is paramount to ensuring dimensional accuracy, surface finish, and overall performance.
The slotting process for internal gears involves a gear-shaped cutter, known as a slotting tool, which performs a reciprocating motion along the axial direction (z-axis) of the workpiece to remove material and form the gear teeth. Simultaneously, the cutter and the workpiece engage in a generating motion, mimicking meshing gears to create the desired tooth profile. Radial feed (x-axis) is incrementally applied to achieve the full tooth depth. This method, while effective, has inherent limitations: machining accuracy typically ranges between IT6 and IT8, with surface roughness values of Ra 0.63 to 2.5 micrometers. Additionally, factors such as tool and machine rigidity, cutting forces, and feed stability directly influence the final gear quality. For internal gear manufacturers, optimizing these parameters is essential to minimize errors like tooth profile deviations and variations in base tangent length, thereby enhancing the reliability of internal gears in demanding applications.
In my analysis of the slotting process for internal gears, I focus on the cutting forces acting on the tool, as these forces significantly impact feed stability and machining outcomes. The cutting force can be decomposed into three components: Fz (axial force along the z-axis), Fx (radial force along the x-axis), and Fy (tangential force along the y-axis). Fz constitutes the primary cutting force, accounting for 80–90% of the total force, and is responsible for material removal and tooth formation. It is balanced by the reaction force from the machine table, but its magnitude varies with cutting depth and axial position, necessitating careful control of feed rates. Fx, typically 3–5% of Fz, acts radially and affects workpiece deflection and tool strength; it is counteracted by the tool shank and machine frame rigidity. Fy, ranging from 15% to 70% of Fz, drives the generating motion and is transmitted to the machine fixture through the meshing action. Understanding these forces is crucial for internal gear manufacturers to design robust tools and machines that minimize vibrations and ensure consistent cutting.
To derive the stable feed conditions, I consider the geometry of the slotting tool, which I approximate as a rack for simplicity. The tool’s total tooth height h is given by:
$$ h = h_a + h_f + c $$
where ha is the tool addendum, hf is the tool dedendum, and c is the clearance. The tool’s top land width b along the circumference is calculated as:
$$ b = \frac{\pi m}{2} – 2(h_a + c) \tan \alpha = \frac{\pi m}{2} – 2(h^*_a m + c^* m) \tan \alpha $$
Here, m is the module, h*a is the addendum coefficient, c* is the clearance coefficient, and α is the pressure angle (typically 20°). For internal gears, maintaining uniform cutting areas during each radial feed increment ensures stable cutting forces and smooth operation.
The stable feed condition along the radial direction (x-axis) requires that the cross-sectional area of material removed per tooth per feed step remains constant. This minimizes fluctuations in Fz and promotes consistent cutting. Denoting the cutting depth at the i-th feed step as ai, the cutting area Ai in the x-y plane is expressed as:
$$ A_i = a_i b + a_i^2 \tan \alpha + \sum_{k=1}^{i-1} \frac{2 a_i a_k \tan \alpha}{\cos \alpha} $$
For stability, all Ai must be equal:
$$ A_1 = A_2 = \cdots = A_i = \cdots = A_n $$
which implies constant cutting force:
$$ F_{z1} = F_{z2} = \cdots = F_{zi} = \cdots = F_{zn} $$
As an example, for a module m = 4 mm, addendum coefficient h*a = 1, clearance coefficient c* = 0.25, pressure angle α = 20°, and tool top land width b ≈ 2.64 mm, the cutting depths can be computed iteratively to satisfy this condition. Assuming a total tooth height h = 9 mm, the first feed step a1 = 1 mm yields A1 ≈ 3.004 mm². Subsequent depths are a2 ≈ 0.81 mm, a3 ≈ 0.69 mm, a4 ≈ 0.63 mm, a5 ≈ 0.58 mm, and so forth, until the full tooth profile is achieved. This approach helps internal gear manufacturers achieve predictable tool wear and improved surface quality for internal gears.
| Feed Step i | Cutting Depth a_i (mm) | Cutting Area A_i (mm²) |
|---|---|---|
| 1 | 1.00 | 3.004 |
| 2 | 0.81 | 3.004 |
| 3 | 0.69 | 3.004 |
| 4 | 0.63 | 3.004 |
| 5 | 0.58 | 3.004 |
Along the axial direction (z-axis), stable feed conditions are vital to counteract deformations and ensure uniform cutting. The radial force Fx causes bending of the tool shank, which I model as a cantilever beam. The deflection y at the tool tip is given by:
$$ y = \frac{F_x l^3}{3E I_z} = \frac{F_x l^3(x)}{3E I_z(x)} $$
where l is the distance from the fixed end, E is the elastic modulus of the tool material, and Iz is the area moment of inertia. To minimize deflection, internal gear manufacturers should use tapered or variable-cross-section tool shanks that increase Iz near the base, reducing y and enhancing accuracy for internal gears. Additionally, the shear force during cutting must remain constant to avoid vibrations. The instantaneous power N(t) during cutting is:
$$ N(t) = F(t) \cdot \upsilon $$
where υ is the constant feed velocity, and F(t) is the cutting force. For a material with allowable shear stress [τ], the force can be related to the cutting area:
$$ F(t) = [\tau] \cdot A(t) = [\tau] \cdot s(t) \cdot \upsilon \cdot t $$
Here, s(t) is the arc length of the cutting edge in contact at time t. Thus, the axial cutting force Fz is:
$$ F_{zt} = \frac{N(t)}{\upsilon} = [\tau] s(t) \upsilon t $$
For stable feed, the product of cutting edge length and time must be constant across all feed steps:
$$ s_1(t) t_1 = s_2(t) t_2 = \cdots = s_i(t) t_i = \cdots = s_n(t) t_n $$
ensuring uniform cutting force:
$$ F_{z1} = F_{z2} = \cdots = F_{zi} = \cdots = F_{zn} $$
This condition implies that for longer cutting edges, the engagement time should be shorter, and vice versa, allowing internal gear manufacturers to program variable dwell times in CNC systems for optimal performance.
| Force Component | Magnitude Relative to Fz | Direction | Primary Effect | Stabilization Method |
|---|---|---|---|---|
| Fz (Axial) | 80–90% | z-axis | Material removal, tooth formation | Constant cutting area and edge length |
| Fx (Radial) | 3–5% | x-axis | Tool and workpiece deflection | Stiff tool shank, variable cross-section |
| Fy (Tangential) | 15–70% | y-axis | Generating motion, power transmission | Balanced meshing, rigid fixtures |
In practice, implementing these stable feed conditions requires advanced tool design and process control. For instance, the slotting tool must have precise tooth geometry to maintain consistent b and α values. Internal gear manufacturers often use high-speed steel or carbide tools with coatings to reduce wear and enhance durability. Moreover, real-time monitoring of cutting forces can help adjust feed rates dynamically, further improving stability. The integration of these principles allows for the production of internal gears with tight tolerances and smooth surfaces, meeting the demands of high-performance applications.
To illustrate the importance of feed stability, consider the impact on gear meshing and noise reduction. Unstable feeds can lead to uneven tooth surfaces, increasing vibration and acoustic emissions in internal gear systems. By adhering to the derived conditions, manufacturers can achieve better contact patterns and longer service life. Additionally, the use of computational simulations to model cutting forces and deformations can aid in optimizing tool paths and feed schedules, reducing trial-and-error in production.
In conclusion, the stable feed conditions for internal gear machining are foundational to achieving high-quality gears. The radial feed stability, governed by constant cutting area, and the axial feed stability, ensured by uniform cutting force and minimized deflection, are critical for precision. As an internal gear manufacturer, applying these principles through robust tool design, controlled feed rates, and rigid machine setups can significantly enhance the accuracy and efficiency of internal gear production. Future advancements may involve adaptive control systems that automatically adjust feeds based on sensor feedback, pushing the boundaries of what internal gears can achieve in modern machinery. By prioritizing stable feed conditions, manufacturers can overcome the inherent challenges of internal gear processing and deliver reliable components for diverse industrial applications.
