In mechanical transmission systems, straight bevel gears play a critical role in transferring motion and power between intersecting shafts, typically at a 90-degree angle. These gears are widely used in industrial applications such as conveyors, vehicle differentials, and machine tools due to their simplicity in design, ease of installation, and adjustability. However, the unique structural characteristics of straight bevel gears, including tapered teeth from the large end to the small end, pose challenges in accurately predicting their dynamic behavior under operational conditions. Traditional static analyses often fall short in capturing the transient effects during meshing, which can lead to premature failure or reduced durability. To address this, we conducted a comprehensive transient dynamics analysis using finite element software ANSYS Workbench, focusing on the stress and strain distributions under varying rotational speeds. This study aims to provide a detailed simulation of the meshing process for straight bevel gears, enabling improved design precision and longevity. By examining scenarios with different rotational speeds, we seek to understand how dynamic loads influence gear performance and identify critical areas prone to stress concentration.

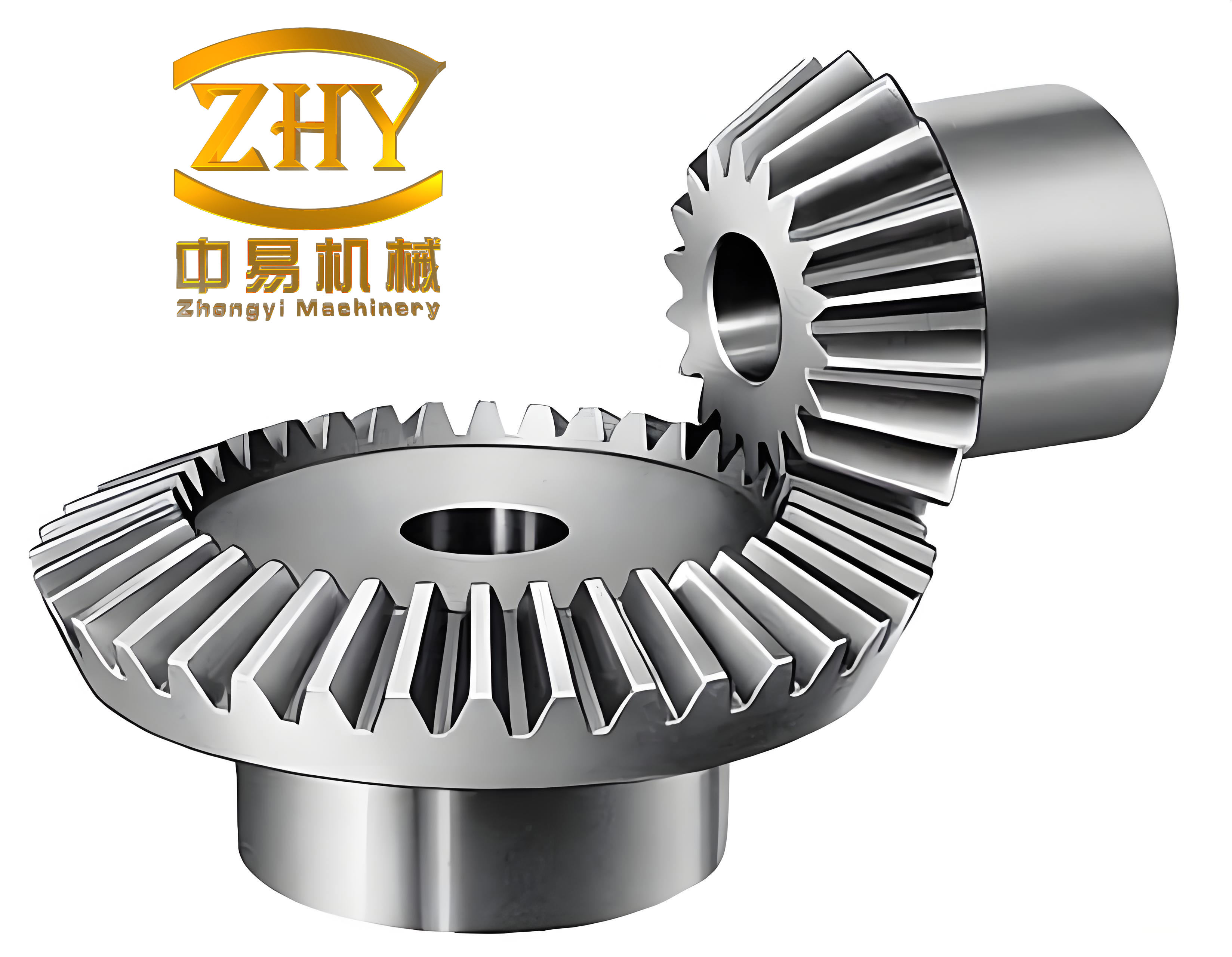

The analysis begins with the creation of a three-dimensional assembly model of the straight bevel gear pair. Given the complexity of straight bevel gear geometry, where tooth parameters vary along the length from the large end to the small end, direct modeling in standard CAD software can be inefficient. Therefore, we utilized GearTrax, a specialized gear design tool, to generate the accurate tooth profiles based on the specified parameters. The meshing condition for straight bevel gears requires that the module and pressure angle at the large end are equal for both gears, and the cone distances match. According to these criteria, we assembled the gears in SolidWorks, ensuring proper alignment and engagement. The key parameters for the straight bevel gears are summarized in Table 1, which includes details such as module, number of teeth, pressure angle, shaft angle, and pitch cone angles. The assembled three-dimensional model, as depicted in the following visualization, illustrates the interaction between the driving and driven straight bevel gears, highlighting their conical structure and meshing teeth.
| Parameter | Driving Gear | Driven Gear |
|---|---|---|
| Module (mm) | 2.5 | 2.5 |
| Number of Teeth | 17 | 35 |
| Pressure Angle (°) | 20 | 20 |
| Shaft Angle (°) | 90 | 90 |
| Pitch Cone Angle (°) | 25.906 | 64.093 |
Material properties are essential for accurate finite element analysis, as they define the mechanical behavior under load. For this study, the straight bevel gears are made of quenched and tempered 45 steel, which offers a balance of high strength, plasticity, and toughness, making it suitable for demanding operational environments. The material properties include a density of 7,860 kg/m³, an elastic modulus of 2.07 GPa, a Poisson’s ratio of 0.3, a bulk modulus of 1.725 GPa, and a shear modulus of 7.9615 GPa. These values were input into the Engineering Data module of ANSYS Workbench to assign the material to the gear assembly. The selection of 45 steel ensures that the straight bevel gears can withstand cyclic loading and impact forces commonly encountered in transmission systems.
Mesh generation is a critical step in finite element analysis, as it directly influences the accuracy and computational efficiency of the results. A coarse mesh may lead to inaccurate stress predictions, while an overly refined mesh can consume excessive computational resources and time. In ANSYS Workbench, we employed the Mesh module to discretize the straight bevel gear assembly. Given the complex geometry of the gears, tetrahedral elements were chosen for their adaptability to irregular shapes. To capture the detailed stress distribution along the tooth surfaces, we refined the mesh in the meshing regions, setting the element size to 1.5 mm. This approach resulted in a mesh with 48,030 nodes and 27,086 elements, balancing precision and computational demand. The meshed model of the straight bevel gear pair is illustrated in the following description, showing the concentrated elements at the tooth contacts for enhanced analysis.
Transient dynamics analysis is a time-domain method that evaluates the response of a structure to time-varying loads, providing insights into stress, strain, and displacement over time. In ANSYS Workbench, we used the Transient Structural module to simulate the dynamic behavior of the straight bevel gears. The fundamental equation governing transient dynamics is derived from classical mechanics and is expressed as:
$$ [M]\{\ddot{x}\} + [C]\{\dot{x}\} + [K]\{x\} = \{F(t)\} $$
where $[M]$ is the mass matrix, $[C]$ is the damping matrix, $[K]$ is the stiffness matrix, $\{\ddot{x}\}$ is the acceleration vector, $\{\dot{x}\}$ is the velocity vector, $\{x\}$ is the displacement vector, and $\{F(t)\}$ is the time-dependent load vector. This equation accounts for inertial, damping, and elastic forces, allowing for a comprehensive analysis of the straight bevel gear system under dynamic conditions.
For the pre-processing phase, we defined the boundary conditions and loads to replicate real-world operational scenarios. The driving straight bevel gear was subjected to rotational velocities, while the driven gear experienced a resisting torque to simulate the load during meshing. Specifically, we applied three different rotational speeds to the driving gear: 30 rpm, 60 rpm, and 90 rpm, and a constant torque of 20 N·m to the driven gear. To facilitate relative motion, we added revolute joints between each gear and the ground, constraining all degrees of freedom except rotation. The contact between the gear teeth was modeled as frictional with a coefficient of 0.2, and we used named selections to efficiently define the contact and target surfaces. The analysis duration was set to 1 second, with initial, minimum, and maximum substeps of 25, 20, and 250, respectively, to ensure convergence and accuracy. These settings enable a detailed examination of the straight bevel gear behavior under transient loads.
Post-processing involved extracting the equivalent stress and strain distributions over time. The results for each rotational speed are summarized in Table 2, which presents the maximum equivalent stress and strain values, along with their locations. The stress and strain contours reveal that the highest values consistently occur at the large end of the straight bevel gears, where the teeth engage under maximum load. This concentration is due to the geometric taper and the force transmission characteristics of straight bevel gears. For instance, at 30 rpm, the maximum equivalent stress is 288.6 MPa, and the maximum equivalent strain is 1.44 × 10^{-3} mm. As the speed increases to 60 rpm and 90 rpm, the stress values decrease to 274.3 MPa and 272.85 MPa, respectively, while the strain values follow a similar trend. This indicates that higher rotational speeds lead to reduced stress levels and greater stability in the straight bevel gear system.
| Rotational Speed (rpm) | Maximum Equivalent Stress (MPa) | Maximum Equivalent Strain (mm) | Location of Maximum Values |
|---|---|---|---|
| 30 | 288.6 | 1.44 × 10^{-3} | Large end of straight bevel gear |
| 60 | 274.3 | 1.37 × 10^{-3} | Large end of straight bevel gear |
| 90 | 272.85 | 1.36 × 10^{-3} | Large end of straight bevel gear |
To assess the strength adequacy of the straight bevel gears, we compared the maximum equivalent stresses with the allowable stress of the material. The yield strength of 45 steel is 355 MPa, and applying a safety factor of 1.2 gives an allowable stress $[\sigma]$ calculated as:
$$ [\sigma] = \frac{\sigma_s}{S} = \frac{355}{1.2} \approx 295.8 \text{ MPa} $$
where $\sigma_s$ is the yield strength and $S$ is the safety factor. Since all observed stress values are below 295.8 MPa, the straight bevel gear design meets the strength requirements for all tested speeds. This validation is crucial for ensuring reliability in practical applications, such as conveyor systems, where straight bevel gears are subjected to variable loads.
The variation of maximum equivalent stress over time for each rotational speed is illustrated through time-history curves. At 30 rpm, the stress fluctuates significantly, with peaks reaching up to 288.6 MPa, indicating unstable meshing conditions. As the speed increases to 60 rpm and 90 rpm, the stress curves become smoother and more concentrated, with lower maximum values. This trend suggests that higher rotational speeds promote smoother engagement and reduce impact forces in the straight bevel gear pair. The time-dependent behavior can be modeled using differential equations that account for dynamic effects, such as:
$$ \frac{d\sigma}{dt} = f(\omega, F, t) $$
where $\sigma$ is the stress, $\omega$ is the angular velocity, $F$ is the load, and $t$ is time. This equation highlights the inverse relationship between rotational speed and stress magnitude, consistent with our findings for straight bevel gears.
Further analysis of the strain energy distribution provides additional insights into the durability of straight bevel gears. The strain energy $U$ stored in the gear teeth during meshing can be expressed as:
$$ U = \frac{1}{2} \int_V \sigma \epsilon dV $$
where $\sigma$ is the stress, $\epsilon$ is the strain, and $V$ is the volume. In our simulations, the maximum strain energy occurs at the large end, correlating with the stress concentrations. This energy dissipation contributes to wear and fatigue, emphasizing the need for optimized tooth profiles in straight bevel gear design.
In conclusion, this transient dynamics analysis of straight bevel gears demonstrates the importance of simulating dynamic meshing processes to achieve accurate stress and strain predictions. The results show that increasing the rotational speed from 30 rpm to 90 rpm reduces the maximum equivalent stress from 288.6 MPa to 272.85 MPa, while the stress and strain concentrations remain at the large end of the gears. All stress values are within the allowable limit of 295.8 MPa, confirming the structural integrity of the straight bevel gear design. These findings provide valuable guidance for parameter optimization and dynamic control in straight bevel gear transmission systems, contributing to enhanced performance and longevity in industrial applications. Future work could explore the effects of varying torque loads or different materials on the dynamic behavior of straight bevel gears, further expanding the understanding of their operational limits.
