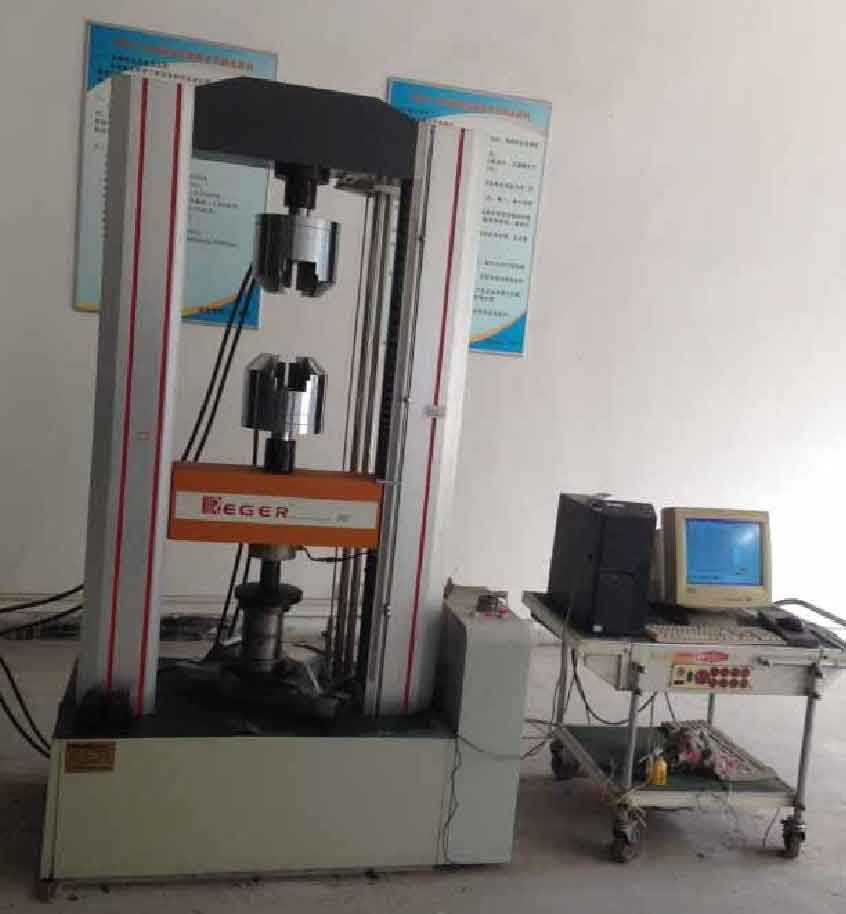

The figure shows the universal material testing machine selected for experimental research. The maximum test load of the helical gear double split precision forging testing machine is 300KN. For example, the table shows the basic technical parameters of the universal material testing machine. The equipment has the functions of superposition, analysis, processing, storage, printing, drawing curve and so on.
The power transmitted by the servo motor drives the beam to move up and down to realize the loading process of helical gear double split precision forging test. It has accurate loading speed and force measuring range, and has higher accuracy and sensitivity for the measurement and control of load, deformation and displacement. It can also carry out the automatic control test of constant speed loading, constant speed deformation and constant speed displacement.
| Parameter name | Numerical value | Parameter name | Numerical value |
| Capacity selection | 300KN（30T） | Maximum stroke | 1000mm |
| Force measuring range | 0.2%—100%F.S | Control system | AC servo controller |
| Unit selection | gf、Kgf、N、KN、LB | Patent system | The whole process of the test is controlled by wireless remote control and microcomputer Bluetooth |
| Induction mode | Imported high precision sensor | Safety device | Automatic diagnosis, timing measurement and overload protection |
| Load accuracy | Plus or minus 0.01% | Data display | Professional operation software of material testing machine |
| Speed range | 0.1—200mm/min | Accuracy class | Grade 0.5 |
| Speed accuracy | 1% | Supporting device | Lenovo computer, canon printer |
| Deformation accuracy | 0.5% | Power supply power | 220V、50HZ |
| Displacement accuracy | Plus or minus 0.5% | Host size | 7100X1200X2800mm（WXDXH） |
| Resolving power | 1/300000 | Net weight of main engine | About 1800kg |
| Test width | 450mm | — | — |
Its various advantages can accurately provide the test results of helical gear double split precision forging, facilitate the extraction of travel load curve in the process of helical gear double split precision forging test, help to compare and analyze with the numerical simulation results, and verify the accuracy of the numerical simulation results.
